SP2-P-DC12V

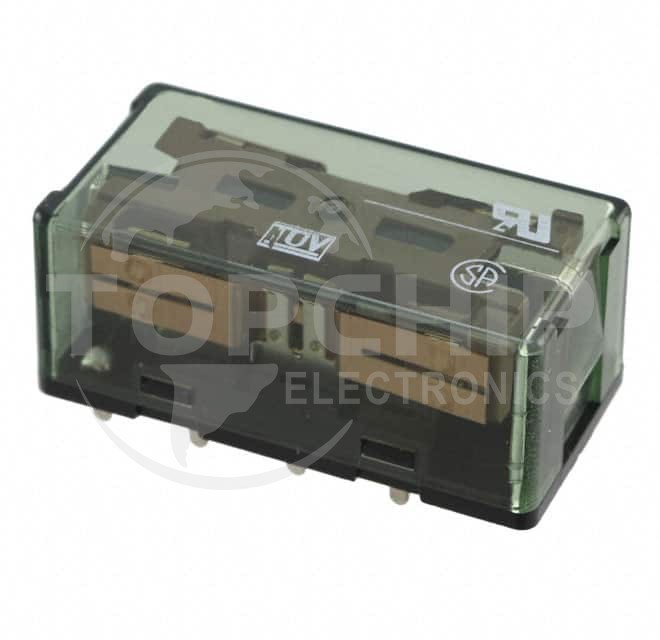

Image is for reference, please contact us to get the real picture

Manufacturer Part
SP2-P-DC12V
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 15A 12V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
113
Datasheets
-

SP2-P-DC12V Specifications

  • Series:SP
  • Package:Tube
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:12VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):15 A
  • Switching Voltage:250VAC, 30VDC - Max
  • Coil Current:25 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:8.4 VDC
  • Must Release Voltage:1.2 VDC
  • Operate Time:30 ms
  • Release Time:20 ms
  • Operating Temperature:-50°C ~ 60°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose
