PTN0805Y2002BST1

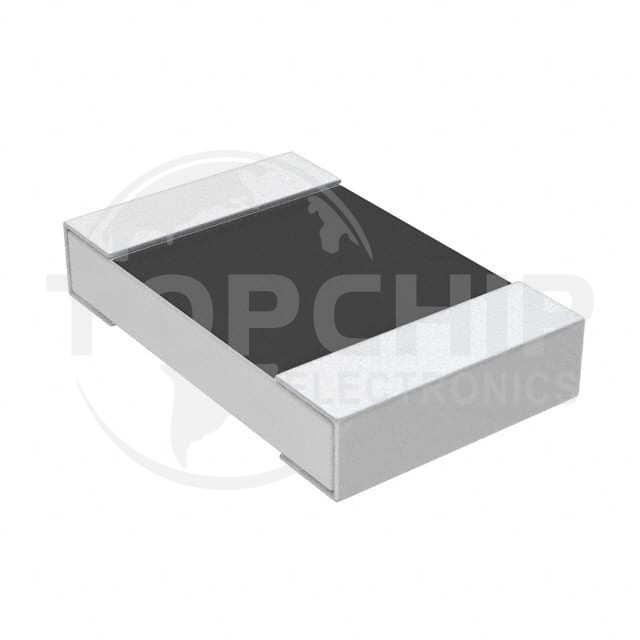

Image is for reference, please contact us to get the real picture

Manufacturer Part
PTN0805Y2002BST1
Manufacturer
Vishay
Description
PTN0805 10PPM 20K 0.1% S T1 E1
Category
Resistors
Family
Chip Resistors-Surface Mount
Series
-
In Stock
2000
Datasheets
-

PTN0805Y2002BST1 Specifications

  • Series:PTN
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Resistance:20 kOhms
  • Tolerance:±0.1%
  • Power (Watts):0.2W, 1/5W
  • Composition:Thin Film
  • Features:Anti-Sulfur, Moisture Resistant, Non-Inductive
  • Temperature Coefficient:±10ppm/°C
  • Operating Temperature:-55°C ~ 155°C
  • Package / Case:0805 (2012 Metric)
  • Supplier Device Package:0805
  • Ratings:-
  • Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Height - Seated (Max):0.033" (0.84mm)
  • Number of Terminations:2
  • Failure Rate:-
