PAT0805E4701BST1

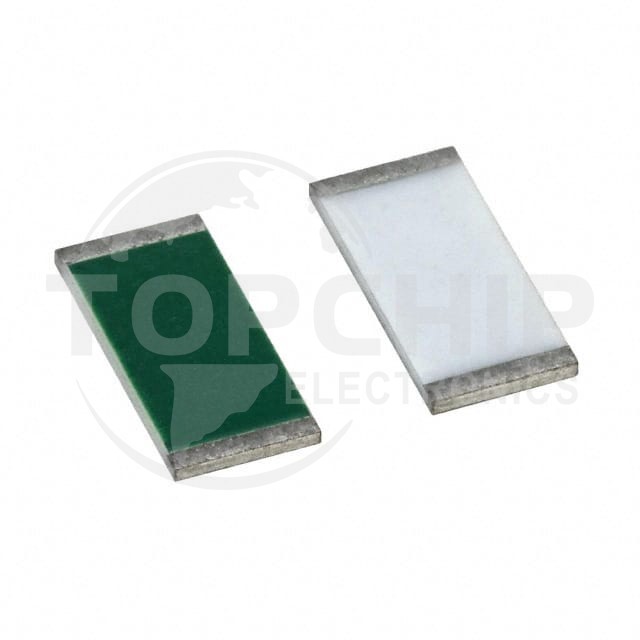

Image is for reference, please contact us to get the real picture

Manufacturer Part
PAT0805E4701BST1
Manufacturer
Vishay
Description
RES SMD 4.7K OHM 0.1% 1/5W 0805
Category
Resistors
Family
Chip Resistors-Surface Mount
Series
-
In Stock
980
Datasheets
-

PAT0805E4701BST1 Specifications

  • Series:PAT
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Resistance:4.7 kOhms
  • Tolerance:±0.1%
  • Power (Watts):0.2W, 1/5W
  • Composition:Thin Film
  • Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
  • Temperature Coefficient:±25ppm/°C
  • Operating Temperature:-55°C ~ 155°C
  • Package / Case:0805 (2012 Metric)
  • Supplier Device Package:0805
  • Ratings:AEC-Q200
  • Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Height - Seated (Max):0.018" (0.46mm)
  • Number of Terminations:2
  • Failure Rate:-
