CSS2H-3920R-L500F

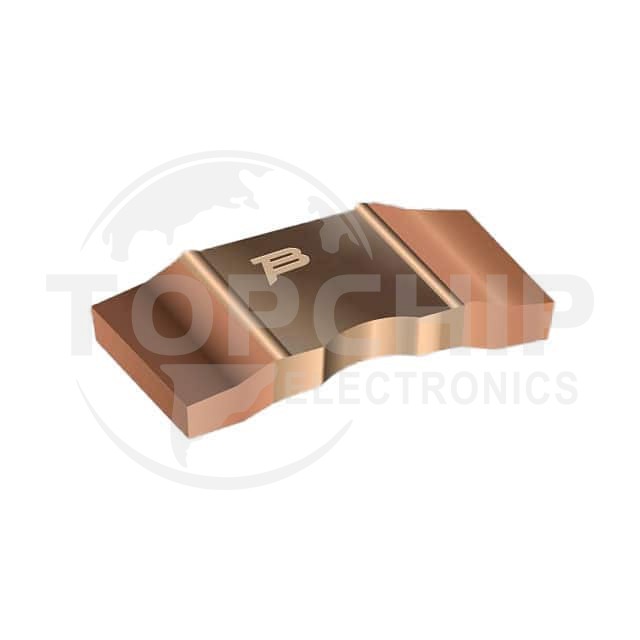

Image is for reference, please contact us to get the real picture

Manufacturer Part
CSS2H-3920R-L500F
Manufacturer
J.W. Miller / Bourns
Description
RES SMD 500 UOHM 1% 9W 3920
Category
Resistors
Family
Chip Resistors-Surface Mount
Series
-
In Stock
450
Datasheets
-

CSS2H-3920R-L500F Specifications

  • Series:CSS2H-3920
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Resistance:500 µOhms
  • Tolerance:±1%
  • Power (Watts):9W
  • Composition:Metal Element
  • Features:Current Sense, Moisture Resistant
  • Temperature Coefficient:±50ppm/°C
  • Operating Temperature:-55°C ~ 170°C
  • Package / Case:3920 (1052 Metric)
  • Supplier Device Package:3920
  • Ratings:-
  • Size / Dimension:0.394" L x 0.205" W (10.00mm x 5.20mm)
  • Height - Seated (Max):0.037" (0.94mm)
  • Number of Terminations:2
  • Failure Rate:-
