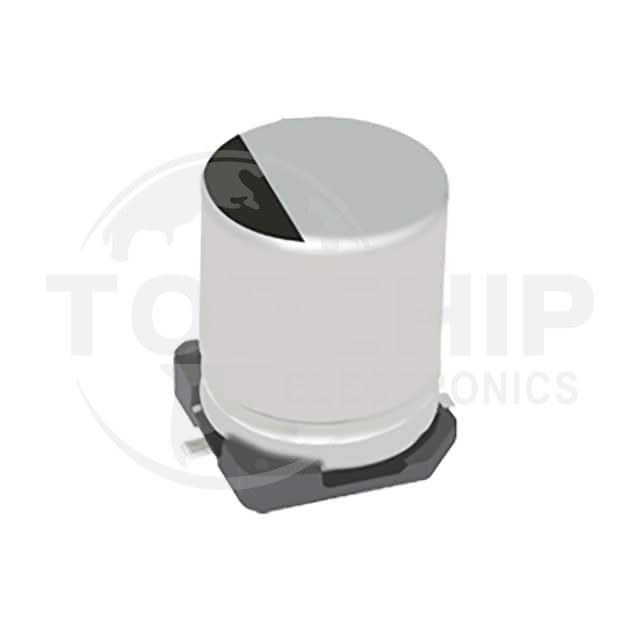

EEE-FN0J470R Specifications

• Series:FN
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Capacitance:47 µF
• Tolerance:±20%
• Voltage - Rated:6.3 V
• ESR (Equivalent Series Resistance):1.35Ohm @ 100kHz
• Lifetime @ Temp.:2000 Hrs @ 105°C
• Operating Temperature:-55°C ~ 105°C
• Polarization:Polar
• Ratings:AEC-Q200
• Applications:Automotive
• Ripple Current @ Low Frequency:58.5 mA @ 120 Hz
• Ripple Current @ High Frequency:90 mA @ 100 kHz
• Impedance:-
• Lead Spacing:-
• Size / Dimension:0.157" Dia (4.00mm)
• Height - Seated (Max):0.240" (6.10mm)
• Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
• Mounting Type:Surface Mount
• Package / Case:Radial, Can - SMD
