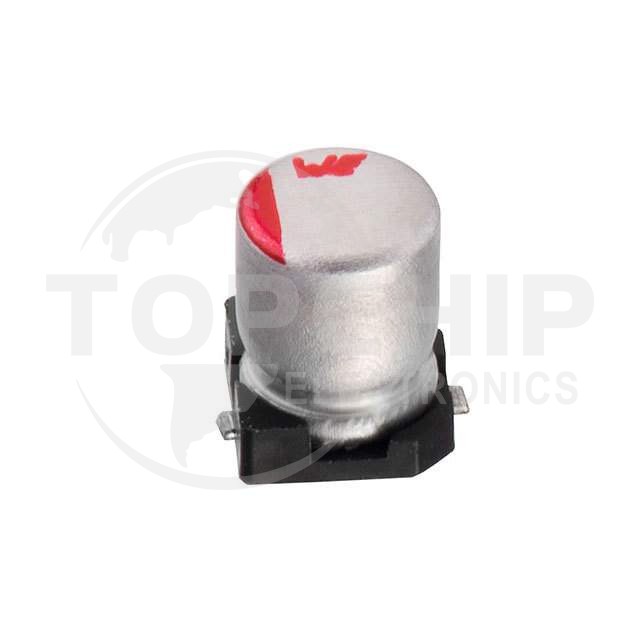

865090142005 Specifications

• Series:WCAP-ASLU
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Capacitance:100 µF
• Tolerance:±20%
• Voltage - Rated:6.3 V
• ESR (Equivalent Series Resistance):-
• Lifetime @ Temp.:1000 Hrs @ 85°C
• Operating Temperature:-40°C ~ 85°C
• Polarization:Polar
• Ratings:-
• Applications:General Purpose
• Ripple Current @ Low Frequency:70 mA @ 120 Hz
• Ripple Current @ High Frequency:105 mA @ 100 kHz
• Impedance:-
• Lead Spacing:-
• Size / Dimension:0.197" Dia (5.00mm)
• Height - Seated (Max):0.217" (5.50mm)
• Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
• Mounting Type:Surface Mount
• Package / Case:Radial, Can - SMD
