B82559A4222A024

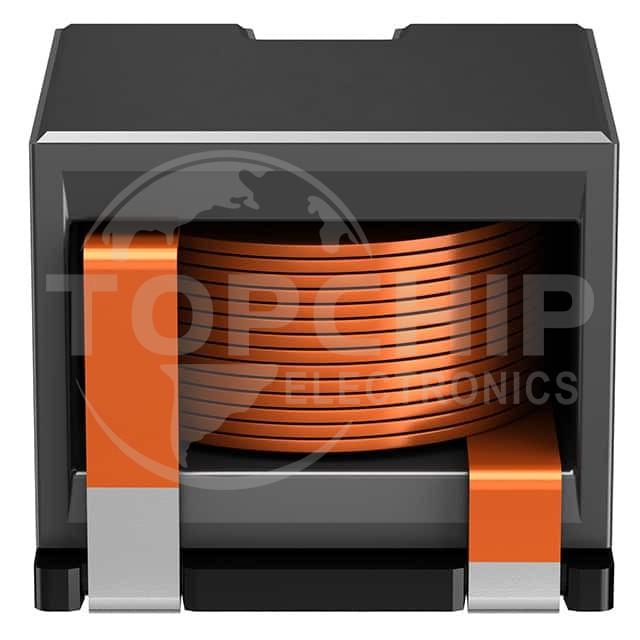

Image is for reference, please contact us to get the real picture

Manufacturer Part
B82559A4222A024
Manufacturer
TDK EPCOS
Description
FIXED IND 2.2UH 44.9A 0.85 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
Series
-
In Stock
255
Datasheets
-

B82559A4222A024 Specifications

  • Series:ERU24 - Flat Wire Inductor
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ferrite
  • Inductance:2.2 µH
  • Tolerance:±10%
  • Current Rating (Amps):44.9 A
  • Current - Saturation (Isat):67.9A
  • Shielding:Shielded
  • DC Resistance (DCR):0.85mOhm
  • Q @ Freq:-
  • Frequency - Self Resonant:-
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 150°C
  • Inductance Frequency - Test:100 kHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard, 3 Lead
  • Supplier Device Package:-
  • Size / Dimension:0.972" L x 0.898" W (24.70mm x 22.80mm)
  • Height - Seated (Max):0.618" (15.70mm)
