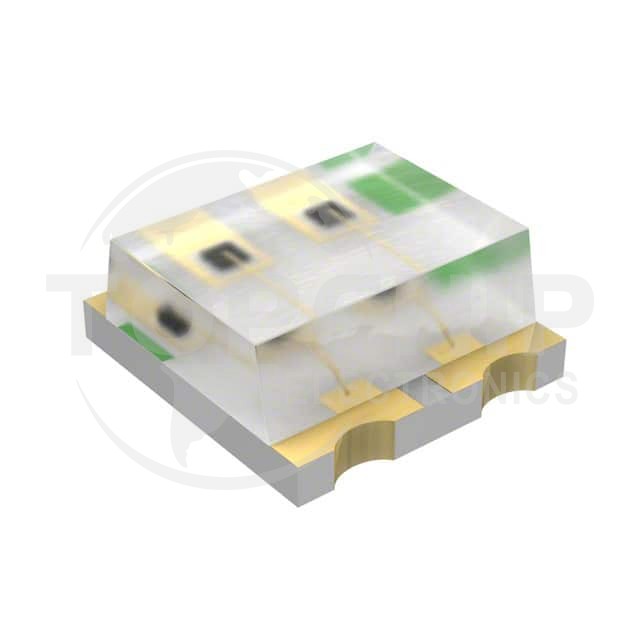

HSMF-C114 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Color:Red, Green, Blue (RGB)
• Configuration:Common Anode
• Lens Color:White
• Lens Transparency:Diffused
• Millicandela Rating:85mcd Red, 180mcd Green, 70mcd Blue
• Lens Style:Rectangle with Flat Top
• Lens Size:1.10mm x 1.50mm
• Voltage - Forward (Vf) (Typ):1.9V Red, 3.4V Green, 3.4V Blue
• Current - Test:20mA Red, 20mA Green, 20mA Blue
• Viewing Angle:140° Red, 145° Green, 145° Blue
• Mounting Type:Surface Mount
• Wavelength - Dominant:626nm Red, 525nm Green, 470nm Blue
• Wavelength - Peak:637nm Red, 523nm Green, 468nm Blue
• Features:-
• Package / Case:0606 (1616 Metric)
• Supplier Device Package:Chip LED
• Size / Dimension:1.60mm L x 1.50mm W
• Height (Max):0.35mm
