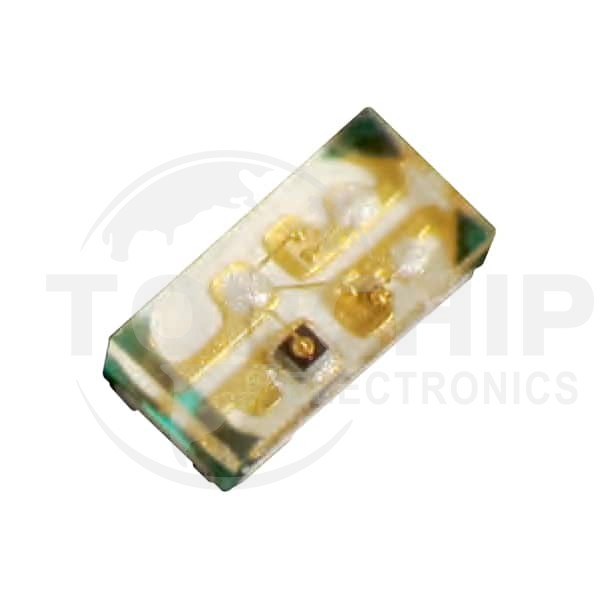

APHF1608LSEEQBDZGKC Specifications

• Series:HELI Colour
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Color:Red, Green, Blue (RGB)
• Configuration:Common Anode
• Lens Color:Colorless
• Lens Transparency:Clear
• Millicandela Rating:15mcd Red, 70mcd Green, 10mcd Blue
• Lens Style:Rectangle with Flat Top
• Lens Size:1.60mm x 0.80mm
• Voltage - Forward (Vf) (Typ):1.8V Red, 2.65V Green, 2.65V Blue
• Current - Test:2mA Red, 2mA Green, 2mA Blue
• Viewing Angle:140°
• Mounting Type:Surface Mount
• Wavelength - Dominant:621nm Red, 525nm Green, 465nm Blue
• Wavelength - Peak:630nm Red, 515nm Green, 460nm Blue
• Features:-
• Package / Case:4-SMD, No Lead
• Supplier Device Package:4-SMD
• Size / Dimension:1.60mm L x 0.80mm W
• Height (Max):0.60mm
