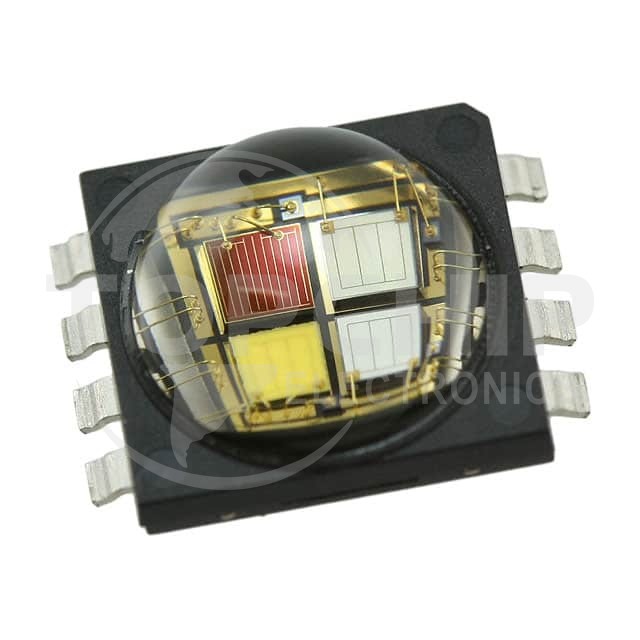

MCE4CT-A2-0000-00A4AAAB1 Specifications

• Series:XLamp® MC-E
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Color:Red, Green, Blue, White - Neutral (RGBW)
• Wavelength:625nm Red, 528nm Green, 458nm Blue, 4000K White
• Current - Test:350mA Red, 350mA Green, 350mA Blue, 350mA White
• Voltage - Forward (Vf) (Typ):2.1V Red, 3.4V Green, 3.2V Blue, 3.2V White
• Lumens/Watt @ Current - Test:42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 71 lm/W White, Neutral
• Current - Max:700mA Red, 700mA Green, 700mA Blue, 700mA White
• Luminous Flux @ Current/Temperature:31lm Red, 67lm Green, 8lm Blue, 80lm White
• Temperature - Test:25°C
• Viewing Angle:115°
• Mounting Type:Surface Mount
• Package / Case:8-SMD, Gull Wing Exposed Pad
• Supplier Device Package:SMD
• Size / Dimension:0.276" L x 0.295" W (7.00mm x 7.50mm)
• Height - Seated (Max):0.184" (4.68mm)
