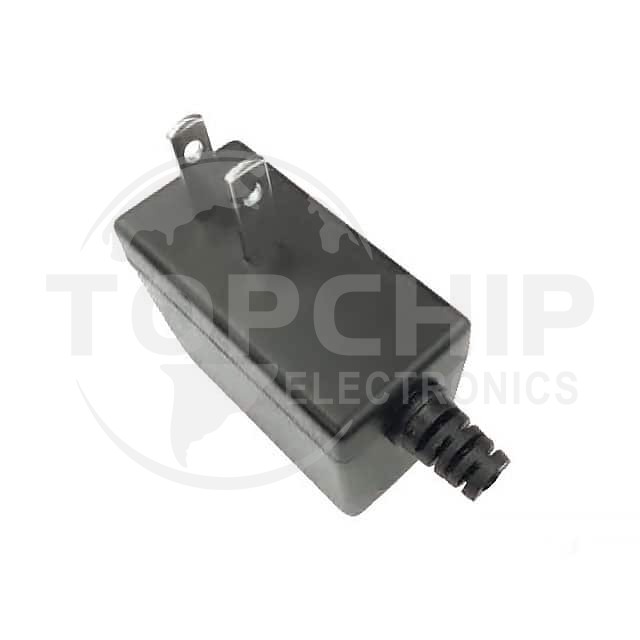

SWI6-9-N-N5 Specifications

• Series:SWI6-N (6W)
• Package:Box
• Part Status:Active
• Region Utilized:North America
• Form:Wall Mount (Class II)
• Input Type:Fixed Blade
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:9V
• Current - Output (Max):670mA
• Power (Watts):6 W
• No Load Power Consumption:100mW (Max)
• Polarization:Negative Center
• Applications:ITE (Commercial)
• Efficiency:Level VI
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:59" (1.50m)
• Input Connector:NEMA 1-15P
• Size / Dimension:2.20" L x 1.10" W x 1.65" H (56.0mm x 28.0mm x 42.0mm)
• Approval Agency:CB Scheme, CSA, FCC, IEC, PSE, UL
• Standard Number:C22.2 No. 60950-1; 60950-1; 62368-1
