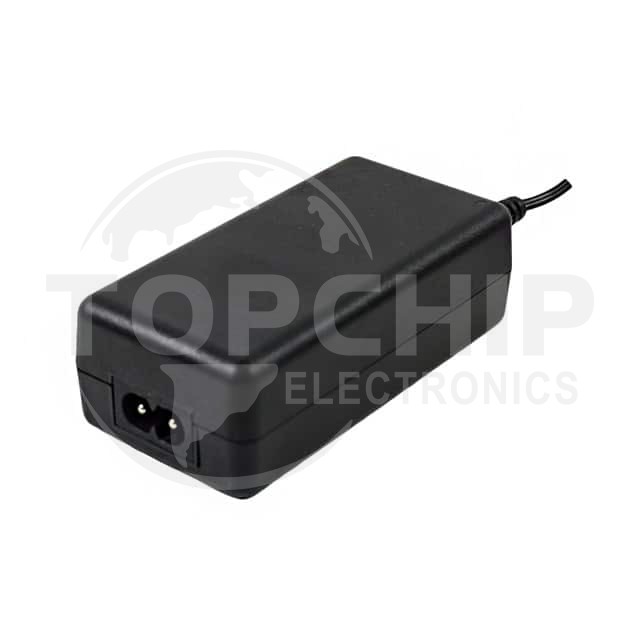

SDM36-24-UD-P5 Specifications

• Series:SDM36-UD (36W)
• Package:Box
• Part Status:Active
• Region Utilized:-
• Form:Desktop (Class II)
• Input Type:Cord (Sold Separately)
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:24V
• Current - Output (Max):1.5A
• Power (Watts):36 W
• No Load Power Consumption:100mW (Max)
• Polarization:Positive Center
• Applications:ITE (Commercial), Medical
• Efficiency:Level VI
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:59" (1.50m)
• Input Connector:IEC 320-C8
• Size / Dimension:3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm)
• Approval Agency:CB Scheme, CSA, EN, FCC, IEC, PSE, UL
• Standard Number:C22.2 No. 60601-1; 55011 Class B; 60601-1; 61000-3-2; 61000-3-3
