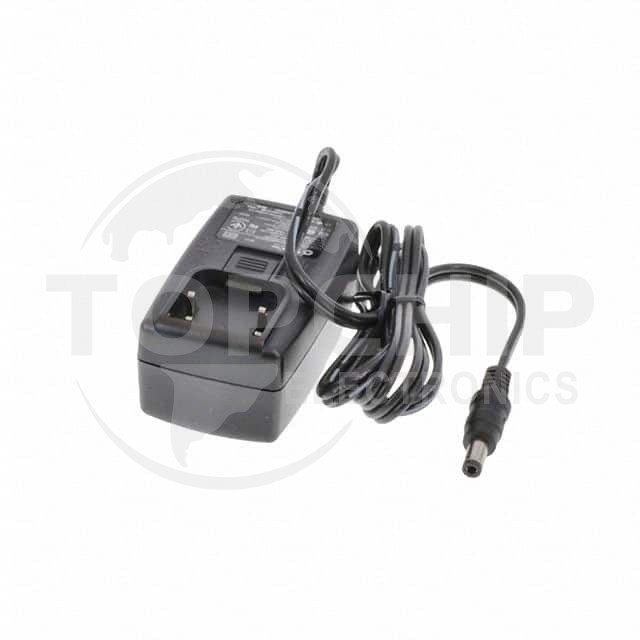

WR9QI1660LCPN(R6B) Specifications

• Series:GTM46402-40VV-x.x-Q
• Package:Bulk
• Part Status:Active
• Region Utilized:International
• Form:Wall Mount (Class II)
• Input Type:Multi-Blade (Sold Separately)
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:24V
• Current - Output (Max):1.66A
• Power (Watts):40 W
• No Load Power Consumption:75mW (Max)
• Polarization:Positive Center
• Applications:Household Appliances, ITE (Commercial), Medical
• Efficiency:Level VI
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
• Cord Length:47.2" (1.20m)
• Input Connector:Multi-Blade (Sold Separately)
• Size / Dimension:1.71" L x 2.91" W x 1.39" H (43.5mm x 74.0mm x 35.3mm)
• Approval Agency:CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, VCCI
• Standard Number:1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1
