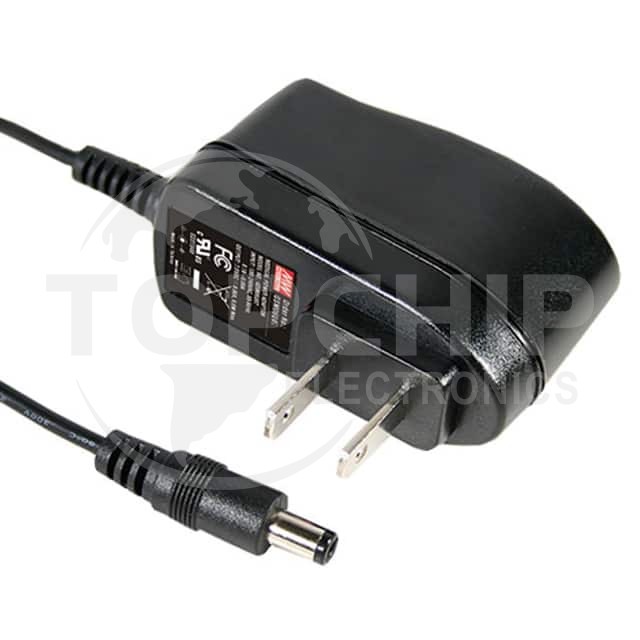

GSM06U24-P1J Specifications

• Series:GSM06U (6W)
• Package:Box
• Part Status:Active
• Region Utilized:North America
• Form:Wall Mount (Class II)
• Input Type:Fixed Blade
• Voltage - Input:85 ~ 264 VAC
• Voltage - Output:24V
• Current - Output (Max):250mA
• Power (Watts):6 W
• No Load Power Consumption:300mW (Max)
• Polarization:Positive Center
• Applications:Medical
• Efficiency:Level V
• Operating Temperature:0°C ~ 50°C
• Output Connector:Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
• Cord Length:72" (1.83m)
• Input Connector:NEMA 1-15P
• Size / Dimension:2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm)
• Approval Agency:cURus
• Standard Number:-
