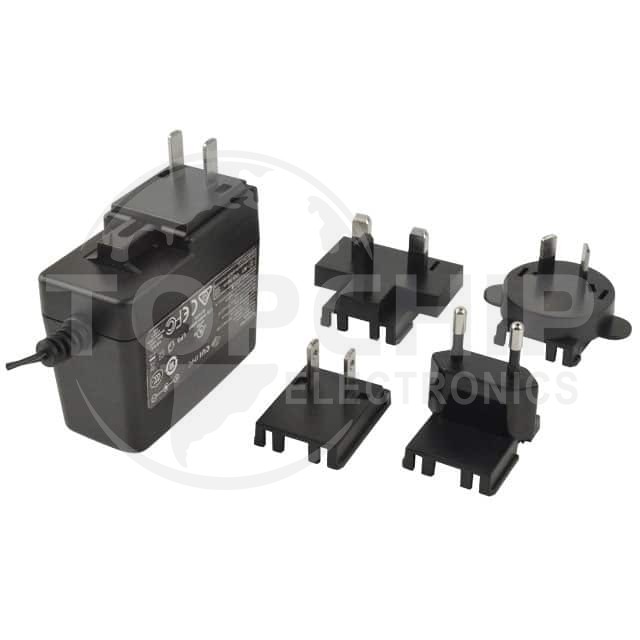

SMI18-5-V-P5R Specifications

• Series:SMI18 (18W)
• Package:Box
• Part Status:Active
• Region Utilized:International
• Form:Wall Mount (Class II)
• Input Type:Multi-Blade (Included)
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:5V
• Current - Output (Max):3A
• Power (Watts):15 W
• No Load Power Consumption:100mW (Max)
• Polarization:Positive Center
• Applications:ITE (Commercial)
• Efficiency:Level VI, CoC Tier 2
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:59" (1.50m)
• Input Connector:Multi-Blade
• Size / Dimension:2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm)
• Approval Agency:CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL
• Standard Number:C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
