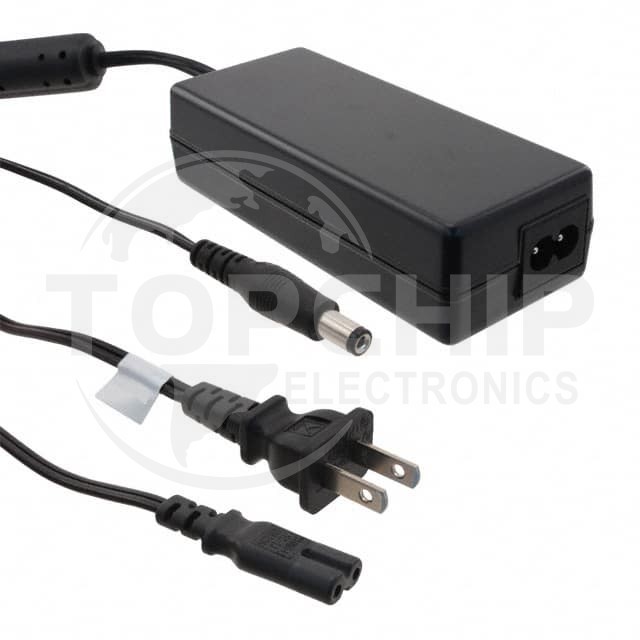

SDI65-24-UDC-P6 Specifications

• Series:SDI65-UD (65W)
• Package:Box
• Part Status:Active
• Region Utilized:North America
• Form:Desktop (Class II)
• Input Type:Cord
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:24V
• Current - Output (Max):2.71A
• Power (Watts):65 W
• No Load Power Consumption:210mW (Max)
• Polarization:Positive Center
• Applications:ITE (Commercial)
• Efficiency:Level VI, CoC Tier 2
• Operating Temperature:0°C ~ 40°C
• Output Connector:Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:59" (1.50m)
• Input Connector:IEC 320-C8
• Size / Dimension:4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm)
• Approval Agency:CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL
• Standard Number:C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
