1010801

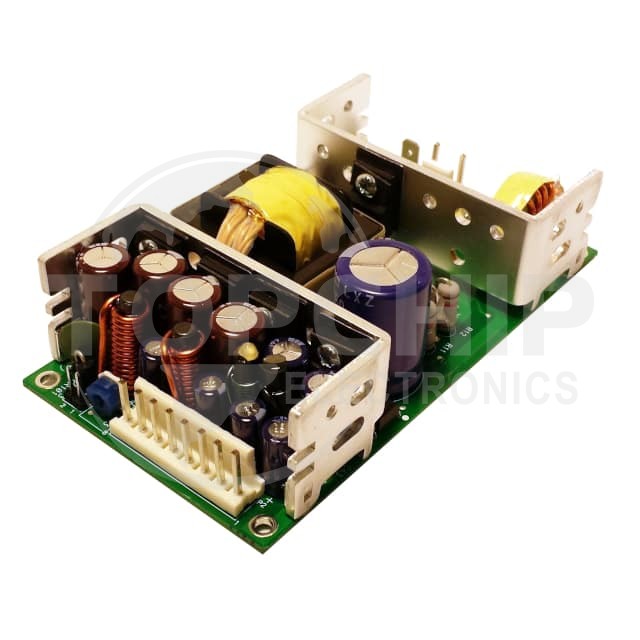

Image is for reference, please contact us to get the real picture

Manufacturer Part
1010801
Manufacturer
Integrated Power Designs
Description
DC/DC CONV 5V 24V 15V -15V 70W
Category
Power Supplies - External/Internal (Off-Board)
Family
DC DC Converters
Series
-
In Stock
12
Datasheets
-

1010801 Specifications

  • Series:DC2-70 (70W)
  • Package:Box
  • Part Status:Active
  • Type:Open Frame
  • Voltage - Input (Min):18V
  • Voltage - Input (Max):36V
  • Number of Outputs:4
  • Voltage - Output 1:5V
  • Voltage - Output 2:24V
  • Voltage - Output 3:15V
  • Voltage - Output 4:-15V
  • Current - Output (Max):6A, 2A, 2A, 2A
  • Power (Watts):70W
  • Voltage - Isolation:-
  • Applications:ITE (Commercial), Medical
  • Efficiency:78%
  • Operating Temperature:0°C ~ 70°C (With Derating)
  • Mounting Type:Chassis Mount
  • Size / Dimension:4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm)
  • Approval Agency:CE, cURus, TUV
  • Standard Number:60601-1; 62368-1
