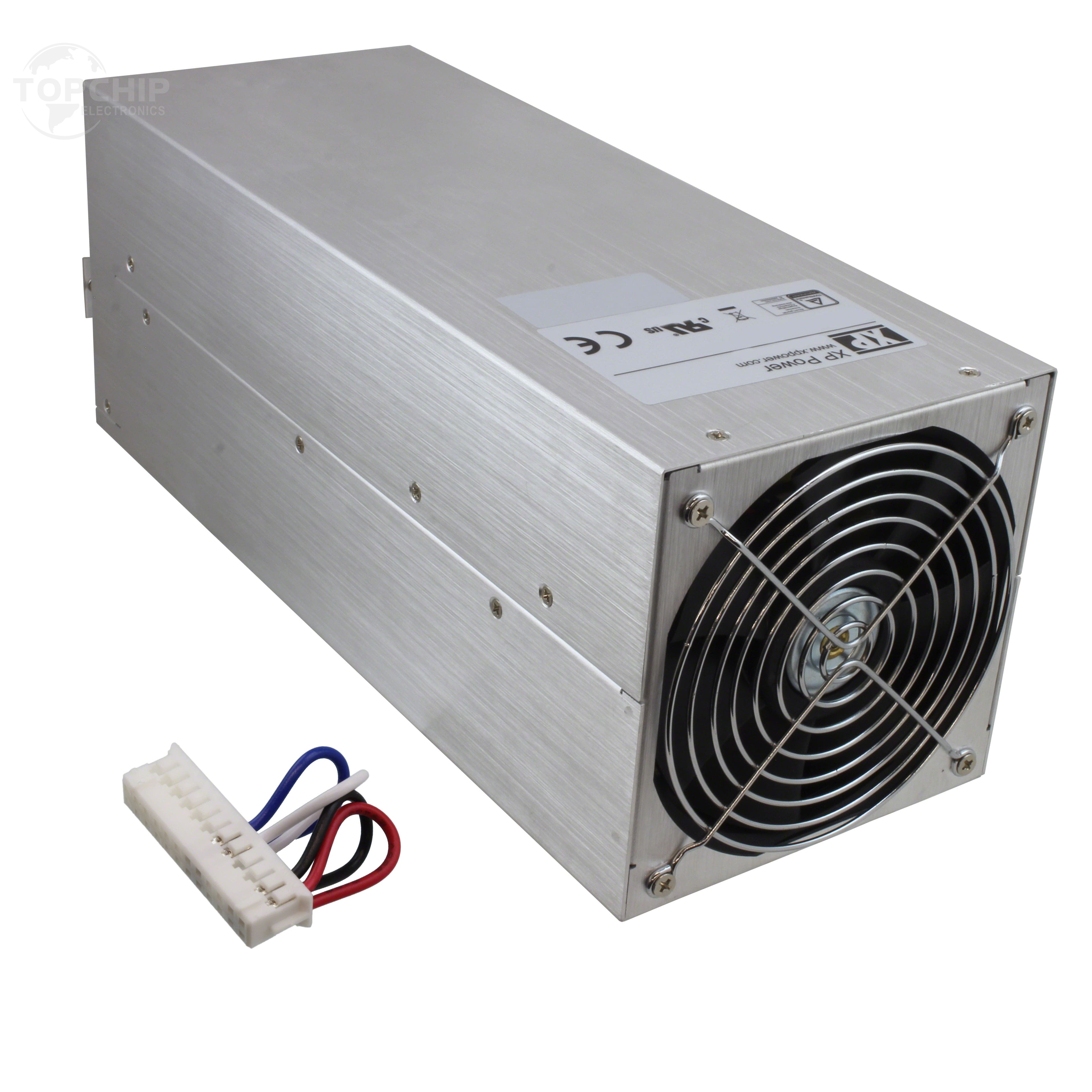

HDS3000PS48 Specifications

• Series:HDS3000 (3000W)
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output 1:48V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):62.5A
• Power (Watts):3000W
• Applications:ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:92%
• Operating Temperature:-20°C ~ 60°C (With Derating)
• Features:Adjustable Output, I²C™ Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:14.41" L x 5.00" W x 5.00" H (366.0mm x 127.0mm x 127.0mm)
• Approval Agency:CB, TUV, UL
• Standard Number:62368-1
