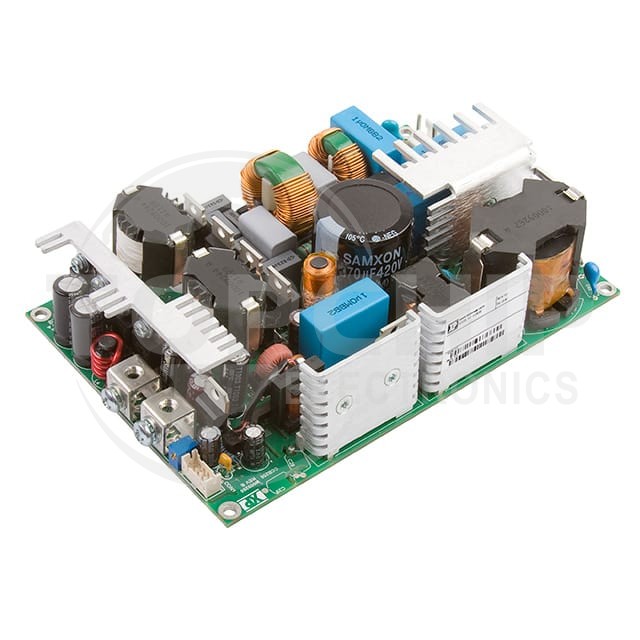

CCB250PS36 Specifications

• Series:CCB250 (250W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:80 ~ 275 VAC
• Voltage - Output 1:36V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):6.9A
• Power (Watts):248W
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:95%
• Operating Temperature:-20°C ~ 70°C (With Derating)
• Features:Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm)
• Approval Agency:CB, TUV, UL
• Standard Number:62368-1
