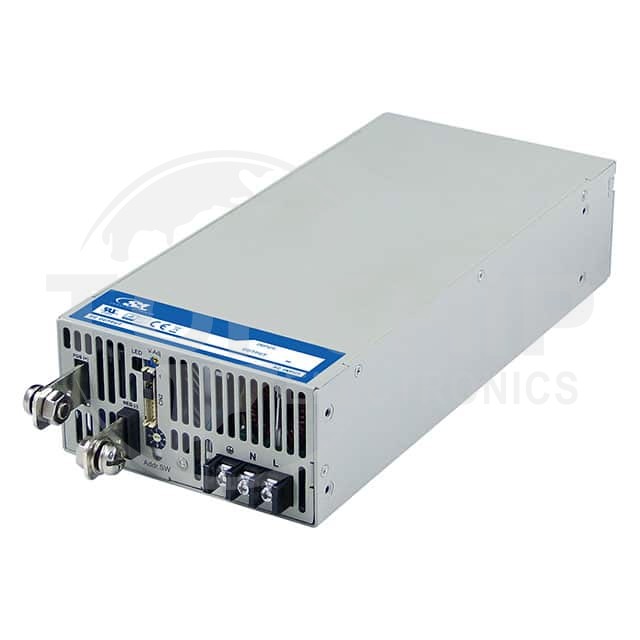

TF1500A60K Specifications

• Series:TF1500 (1500W)
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:1
• Voltage - Input:100 ~ 240 VAC, 127 ~ 370 VDC
• Voltage - Output 1:60V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):25A
• Power (Watts):1500W
• Applications:ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:93%
• Operating Temperature:-25°C ~ 60°C (With Derating)
• Features:Adjustable Output, DC Input Capable, I²C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output
• Mounting Type:Chassis Mount
• Size / Dimension:11.02" L x 5.00" W x 2.52" H (279.9mm x 127.0mm x 64.0mm)
• Approval Agency:CE, cURus, TUV
• Standard Number:-
