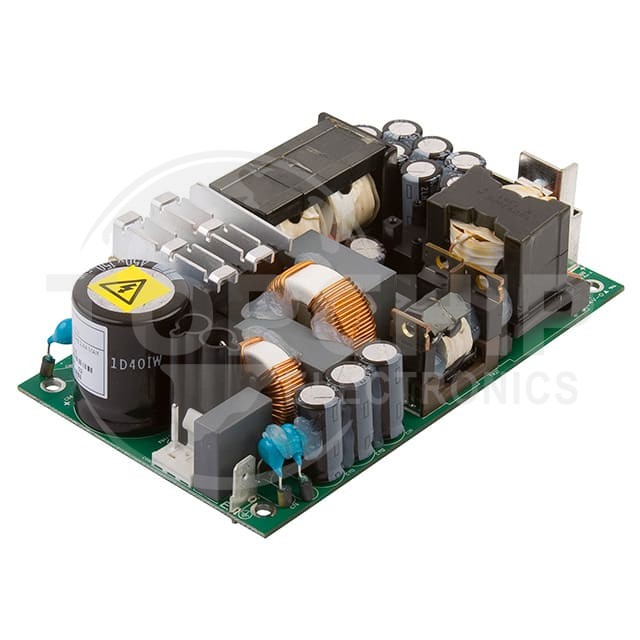

CCB200PS15 Specifications

• Series:CCB200 (200W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:80 ~ 264 VAC
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):13.3A
• Power (Watts):200W
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:95%
• Operating Temperature:-20°C ~ 85°C (With Derating)
• Features:Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm)
• Approval Agency:CB, TUV, UL
• Standard Number:62368-1
