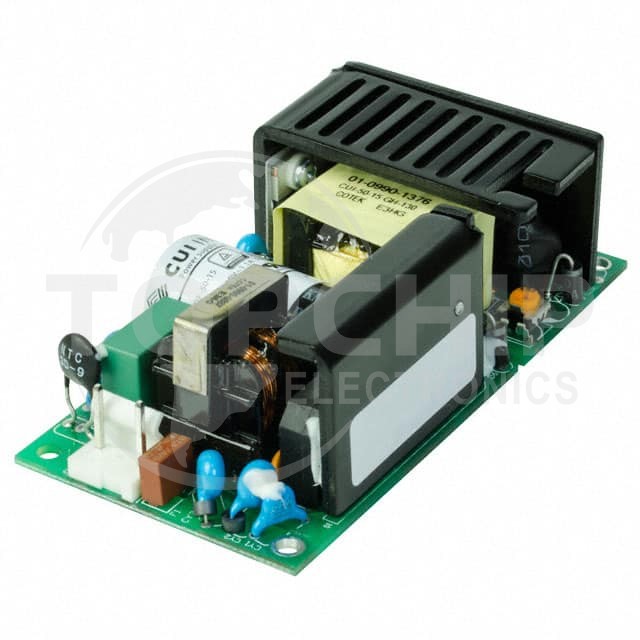

VOF-50-12 Specifications

• Series:VOF-50 (50W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:90 ~ 277 VAC
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):4.2A
• Power (Watts):50W
• Applications:ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:87%
• Operating Temperature:-20°C ~ 60°C (With Derating)
• Features:Adjustable Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm)
• Approval Agency:CB Scheme, EN, FCC, IEC, SIQ, TUV, UL
• Standard Number:55024; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3; 61204-3
