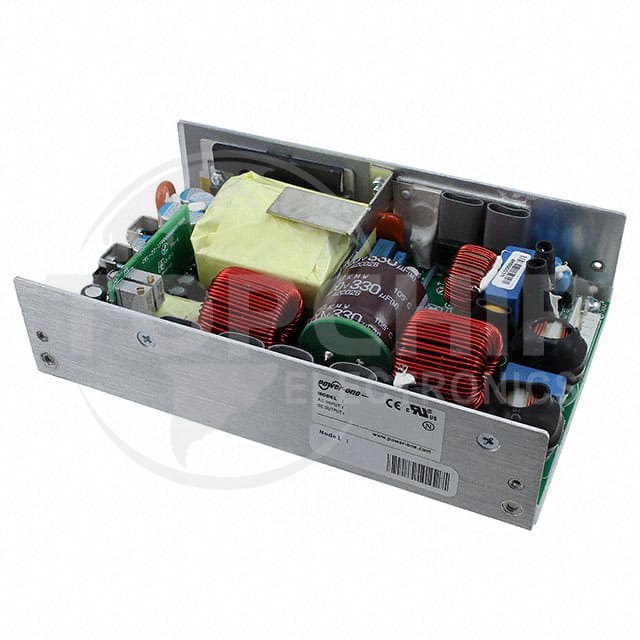

ABC450-1T30G Specifications

• Series:ABC450 (450W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output 1:30V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):10A
• Power (Watts):300W (450W Forced Air)
• Applications:ITE (Commercial)
• Voltage - Isolation:4.242 kV
• Efficiency:88%
• Operating Temperature:-20°C ~ 70°C (With Derating)
• Features:Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm)
• Approval Agency:CE
• Standard Number:-
