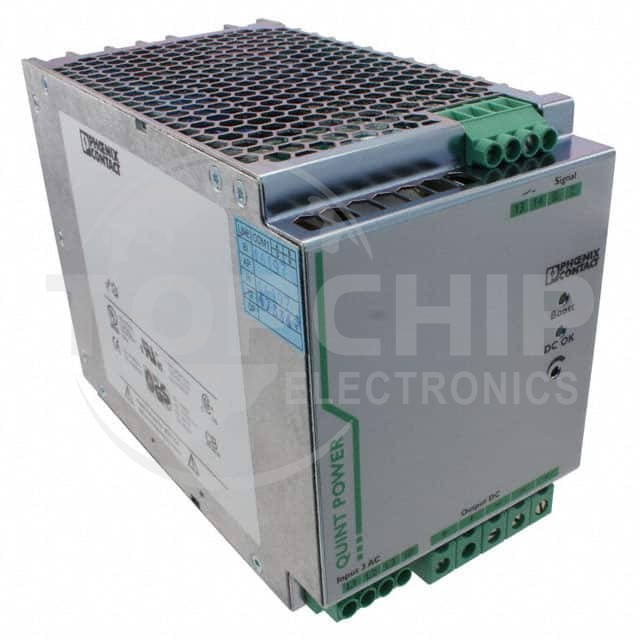

2866802 Specifications

• Series:Quint
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:1
• Voltage - Input:320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase), 450 ~ 800 VDC
• Voltage - Output 1:24V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):40A
• Power (Watts):960W
• Applications:ITE (Commercial)
• Voltage - Isolation:4 kV
• Efficiency:94%
• Operating Temperature:-25°C ~ 70°C (With Derating)
• Features:Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
• Mounting Type:DIN Rail
• Size / Dimension:6.93" L x 3.78" W x 5.12" H (176.0mm x 96.0mm x 130.0mm)
• Approval Agency:CB, cULus, cURus
• Standard Number:-
