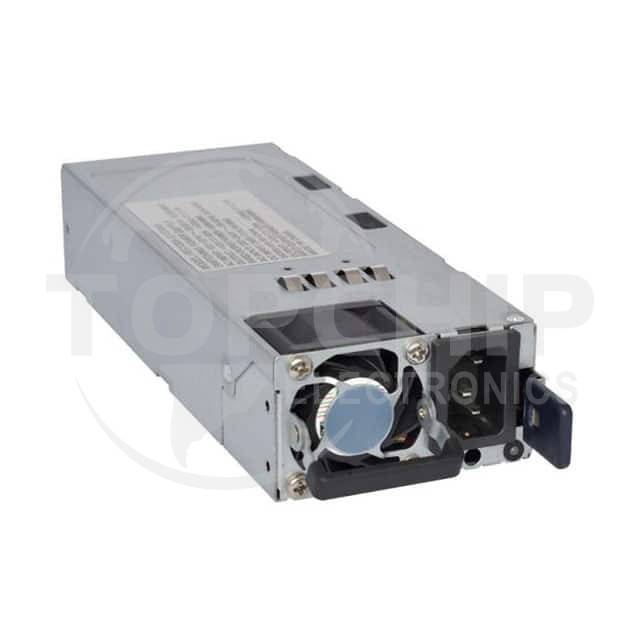

PEC1300-12-074NA Specifications

• Series:PEC1300 (1300W)
• Package:Box
• Part Status:Active
• Type:Front End
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC, 180 ~ 300 VDC
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):108A
• Power (Watts):1296W
• Applications:ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:94%
• Operating Temperature:0°C ~ 50°C
• Features:Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input
• Mounting Type:Rack Mount
• Size / Dimension:7.28" L x 2.89" W x 1.57" H (185.0mm x 73.5mm x 40.0mm)
• Approval Agency:CE
• Standard Number:60950-1; 62368-1
