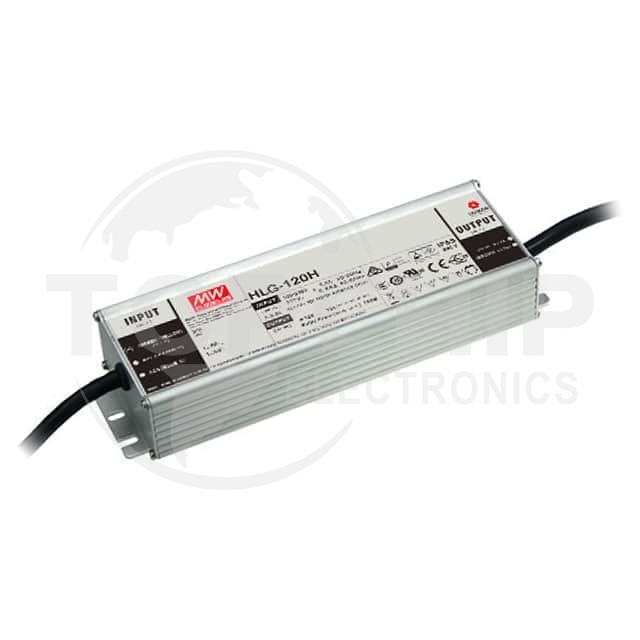

HLG-120H-54B Specifications

• Series:HLG-120H (120W)
• Package:Box
• Part Status:Active
• Type:Constant Current, Voltage
• Topology:AC DC Converter
• Number of Outputs:1
• Voltage - Input (Min):90VAC
• Voltage - Input (Max):305VAC
• Voltage - Output:27 ~ 54V
• Current - Output (Max):2.3A
• Power (Watts):124 W
• Voltage - Isolation:3.75 kV
• Dimming:Analog, PWM
• Features:OCP, OTP, OVP, SCP
• Ratings:IP67
• Operating Temperature:-40°C ~ 80°C
• Efficiency:93.5%
• Termination Style:Wire Leads
• Size / Dimension:7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm)
• Approval Agency:CB, CCC, CE, cURus, ENEC, PSE, RCM, TUV
• Standard Number:-
