0697H9200-05

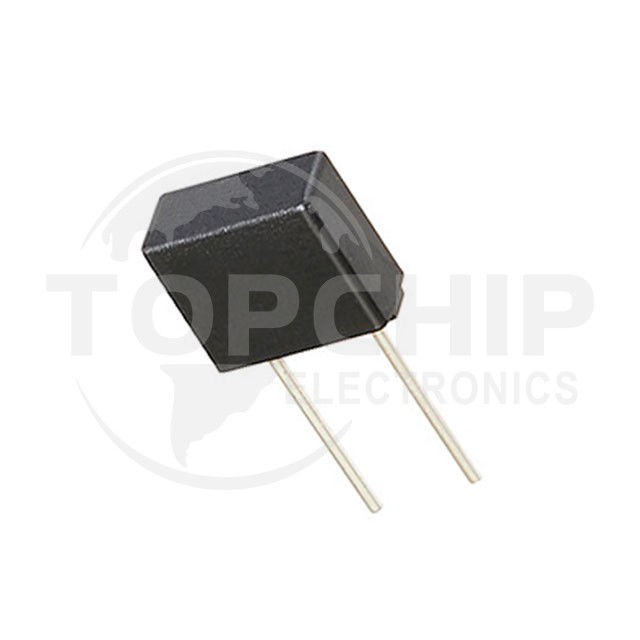

Image is for reference, please contact us to get the real picture

Manufacturer Part
0697H9200-05
Manufacturer
Bel Fuse, Inc.
Description
FUSE BRD MNT 20A 350VAC 72VDC
Category
Circuit Protection Devices
Family
Fuses
Series
-
In Stock
860
Datasheets
-

0697H9200-05 Specifications

  • Series:0697H
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Fuse Type:Board Mount (Cartridge Style Excluded)
  • Current Rating (Amps):20 A
  • Voltage Rating - AC:350 V
  • Voltage Rating - DC:72 V
  • Response Time:Slow Blow
  • Package / Case:Radial, Box
  • Breaking Capacity @ Rated Voltage:150A AC, 200A DC
  • Melting I²t:1100
  • Approval Agency:AEC-Q200, cURus
  • Operating Temperature:-55°C ~ 125°C
  • Color:-
  • Size / Dimension:0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm)
