CDDFN10-0516P

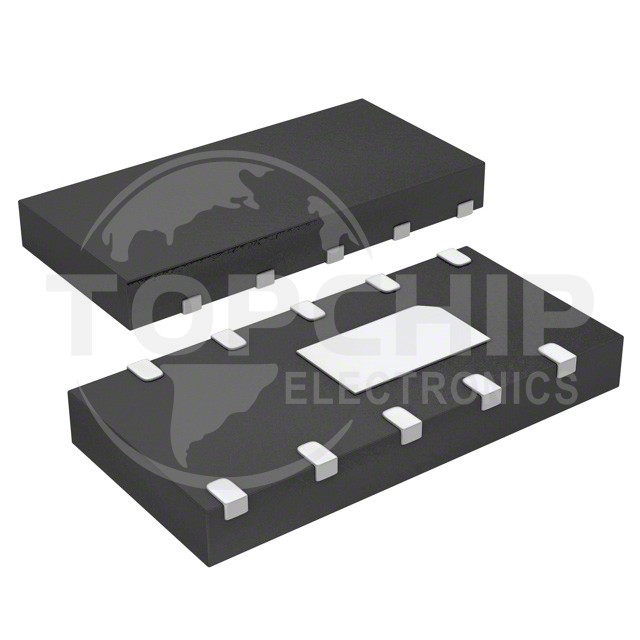

Image is for reference, please contact us to get the real picture

Manufacturer Part
CDDFN10-0516P
Manufacturer
J.W. Miller / Bourns
Description
TVS DIODE 2.2V/3.3V 4.5/7.2V DFN
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
1992
Datasheets
-

CDDFN10-0516P Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Steering (Rail to Rail)
  • Unidirectional Channels:6
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):2.2V (Max), 3.3V (Max)
  • Voltage - Breakdown (Min):4.5V
  • Voltage - Clamping (Max) @ Ipp:4.5V, 7.2V
  • Current - Peak Pulse (10/1000µs):4A (8/20µs)
  • Power - Peak Pulse:-
  • Power Line Protection:Yes
  • Applications:General Purpose
  • Capacitance @ Frequency:0.35pF @ 1MHz
  • Operating Temperature:-40°C ~ 85°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:10-UDFN Exposed Pad
  • Supplier Device Package:10-DFN (4.1x2)
