1SMB14CAT3

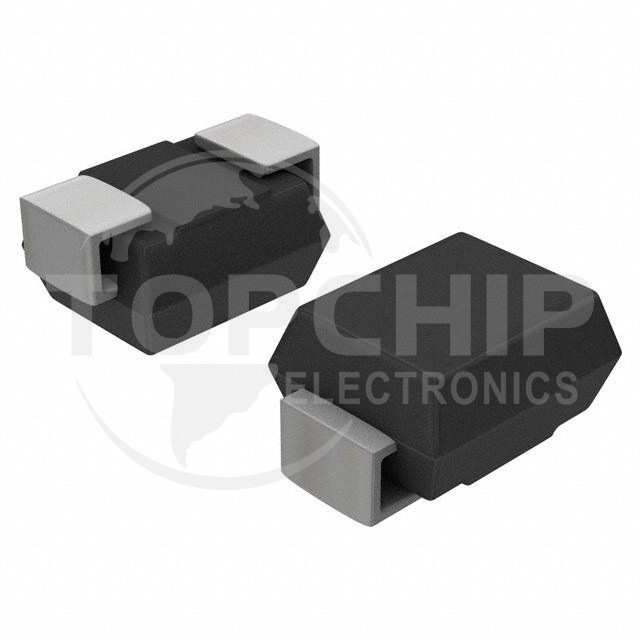

Image is for reference, please contact us to get the real picture

Manufacturer Part
1SMB14CAT3
Manufacturer
Rochester Electronics
Description
TRANS VOLTAGE SUPPRESSOR DIODE
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
12500
Datasheets
-

1SMB14CAT3 Specifications

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):14V
  • Voltage - Breakdown (Min):15.6V
  • Voltage - Clamping (Max) @ Ipp:23.2V
  • Current - Peak Pulse (10/1000µs):25.8A
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:590pF @ 1MHz
  • Operating Temperature:-65°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:SMB
