SZMMBZ9V1ALT3G

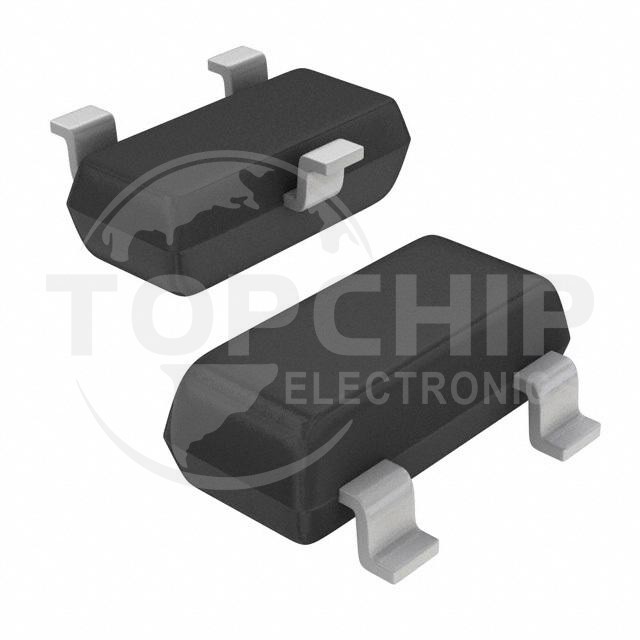

Image is for reference, please contact us to get the real picture

Manufacturer Part
SZMMBZ9V1ALT3G
Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TVS DIODE 6V 14V SOT23-3
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
60000
Datasheets
-

SZMMBZ9V1ALT3G Specifications

  • Series:Automotive, AEC-Q101
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:2
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):6V
  • Voltage - Breakdown (Min):8.65V
  • Voltage - Clamping (Max) @ Ipp:14V
  • Current - Peak Pulse (10/1000µs):1.7A
  • Power - Peak Pulse:24W
  • Power Line Protection:No
  • Applications:Automotive
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package:SOT-23-3 (TO-236)
