SZESD5Z3.3T1G

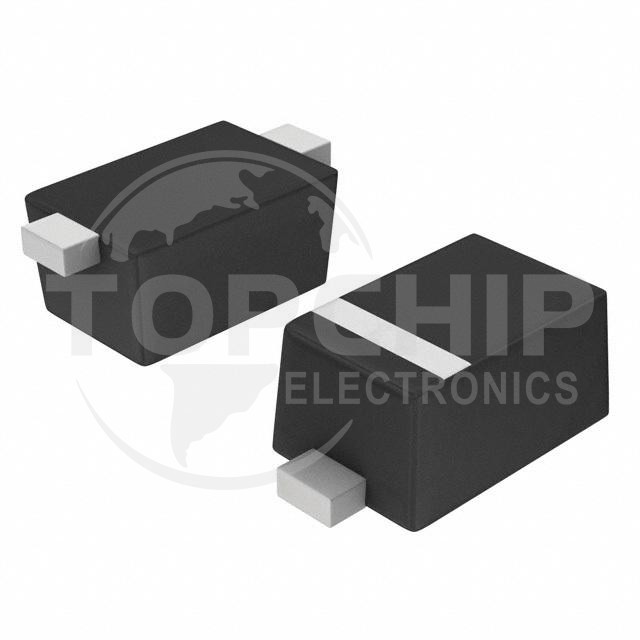

Image is for reference, please contact us to get the real picture

Manufacturer Part
SZESD5Z3.3T1G
Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TVS DIODE 3.3V 14.1V SOD523
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
19996
Datasheets
-

SZESD5Z3.3T1G Specifications

  • Series:Automotive, AEC-Q101
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):3.3V (Max)
  • Voltage - Breakdown (Min):5V
  • Voltage - Clamping (Max) @ Ipp:14.1V
  • Current - Peak Pulse (10/1000µs):11.2A (8/20µs)
  • Power - Peak Pulse:158W
  • Power Line Protection:No
  • Applications:Automotive
  • Capacitance @ Frequency:105pF @ 1MHz
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:SC-79, SOD-523
  • Supplier Device Package:SOD-523
