SMBJ14A

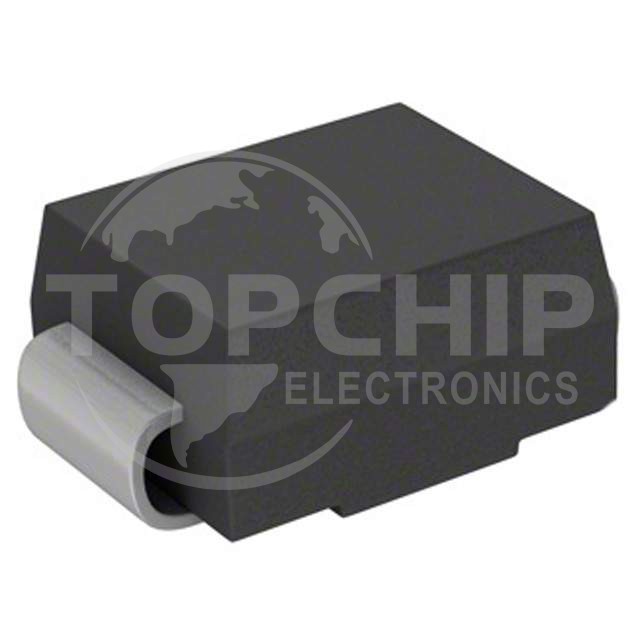

Image is for reference, please contact us to get the real picture

Manufacturer Part
SMBJ14A
Manufacturer
TSC (Taiwan Semiconductor)
Description
TVS DIODE 14V 23.2V DO214AA
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
11696
Datasheets
-

SMBJ14A Specifications

  • Series:SMBJ
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):14V
  • Voltage - Breakdown (Min):15.6V
  • Voltage - Clamping (Max) @ Ipp:23.2V
  • Current - Peak Pulse (10/1000µs):25.9A
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:DO-214AA (SMB)
