SMBJ22CA-13-F

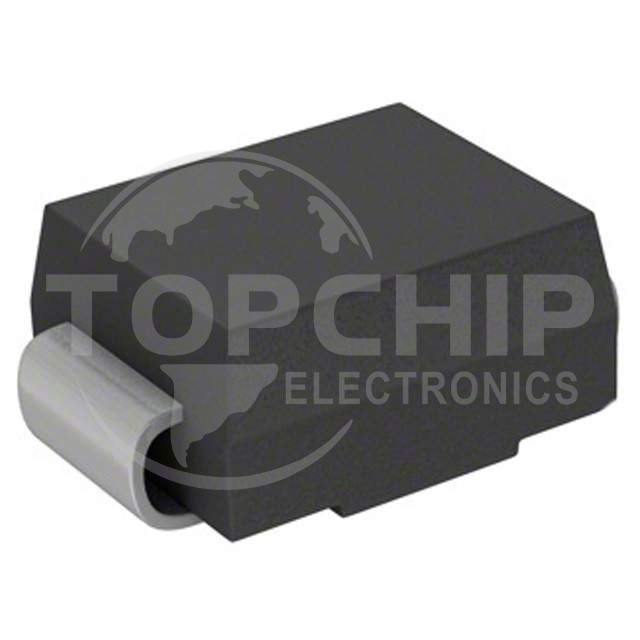

Image is for reference, please contact us to get the real picture

Manufacturer Part
SMBJ22CA-13-F
Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TVS DIODE 22V 35.5V SMB
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
10974
Datasheets
-

SMBJ22CA-13-F Specifications

  • Series:SMBJ
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):22V
  • Voltage - Breakdown (Min):24.4V
  • Voltage - Clamping (Max) @ Ipp:35.5V
  • Current - Peak Pulse (10/1000µs):16.9A
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:SMB
