SM6T56CAY

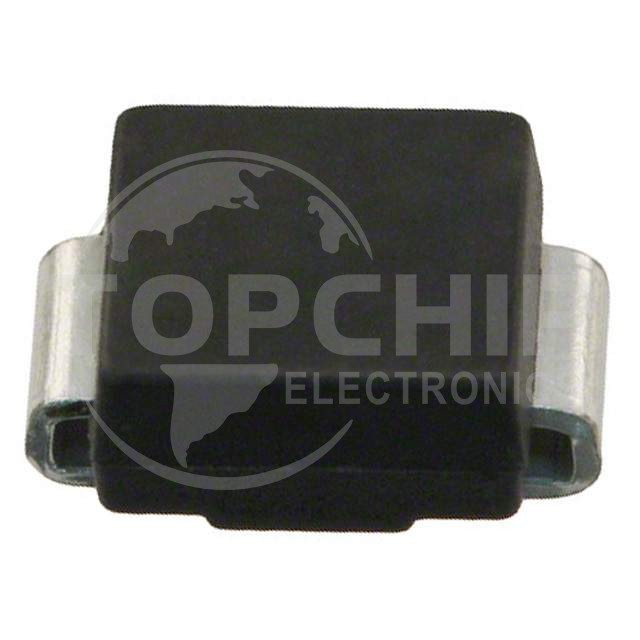

Image is for reference, please contact us to get the real picture

Manufacturer Part
SM6T56CAY
Manufacturer
STMicroelectronics
Description
TVS DIODE 47.6V 100V SMB
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
35
Datasheets
-

SM6T56CAY Specifications

  • Series:Automotive, AEC-Q101, SM6TY, TRANSIL™
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):47.6V
  • Voltage - Breakdown (Min):53.2V
  • Voltage - Clamping (Max) @ Ipp:100V
  • Current - Peak Pulse (10/1000µs):40A (8/20µs)
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:Automotive
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:SMB (DO-214AA)
