D22V0S1U3LP20-7

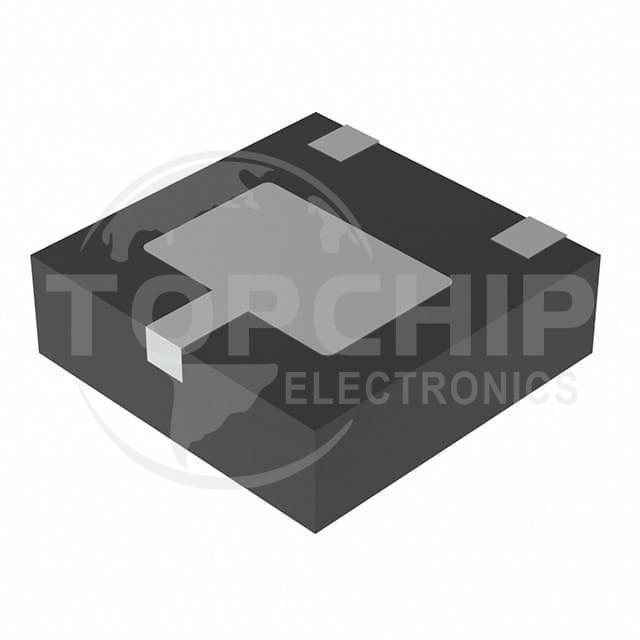

Image is for reference, please contact us to get the real picture

Manufacturer Part
D22V0S1U3LP20-7
Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
SURGE PROTECTION PP U-DFN2020-3
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
33000
Datasheets
-

D22V0S1U3LP20-7 Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):22V (Max)
  • Voltage - Breakdown (Min):24.4V
  • Voltage - Clamping (Max) @ Ipp:35.6V
  • Current - Peak Pulse (10/1000µs):9A
  • Power - Peak Pulse:4000W (4kW)
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-65°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:3-UDFN Exposed Pad
  • Supplier Device Package:U-DFN2020-3 (Type C)
