1N6276A

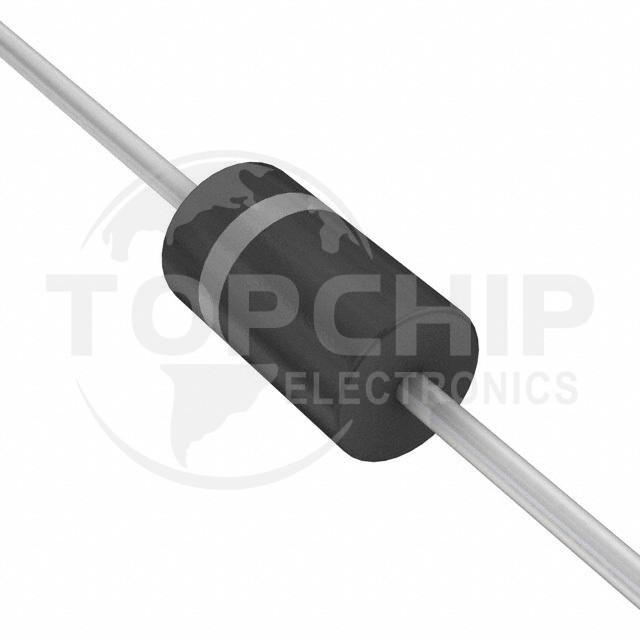

Image is for reference, please contact us to get the real picture

Manufacturer Part
1N6276A
Manufacturer
Rochester Electronics
Description
TRANS VOLTAGE SUPPRESSOR DIODE
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
1548
Datasheets
-

1N6276A Specifications

  • Series:Mosorb™
  • Package:Bulk
  • Part Status:Obsolete
  • Type:Zener
  • Unidirectional Channels:1
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):13.6V
  • Voltage - Breakdown (Min):15.2V
  • Voltage - Clamping (Max) @ Ipp:22.5V
  • Current - Peak Pulse (10/1000µs):-
  • Power - Peak Pulse:1500W (1.5kW)
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-65°C ~ 175°C (TJ)
  • Mounting Type:Through Hole
  • Package / Case:DO-201AD, Axial
  • Supplier Device Package:Axial
