RS120-025

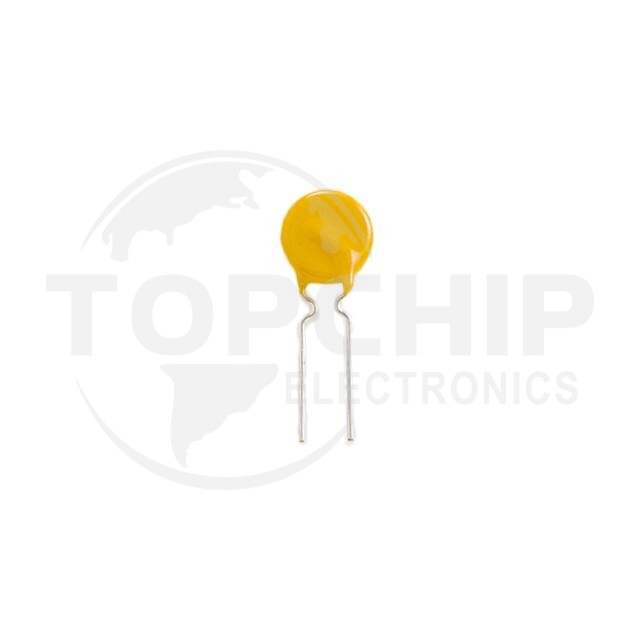

Image is for reference, please contact us to get the real picture

Manufacturer Part
RS120-025
Manufacturer
OptiFuse
Description
PTC RESET FUSE 120V 250MA RADIAL
Category
Circuit Protection Devices
Family
PTC Resettable Fuses
Series
-
In Stock
374
Datasheets
-

RS120-025 Specifications

  • Series:RS120
  • Package:Bulk
  • Part Status:Active
  • Type:Polymeric
  • Voltage - Max:120V (135V Int)
  • Current - Max:3 A
  • Current - Hold (Ih) (Max):250 mA
  • Current - Trip (It):500 mA
  • Time to Trip:7.5 s
  • Resistance - Initial (Ri) (Min):1.25 Ohms
  • Resistance - Post Trip (R1) (Max):3 Ohms
  • Resistance - 25°C (Typ):-
  • Operating Temperature:-40°C ~ 85°C
  • Ratings:-
  • Mounting Type:Through Hole
  • Package / Case:Radial, Disc
  • Size / Dimension:0.311" Dia x 0.150" T (7.90mm x 3.80mm)
  • Height - Seated (Max):0.512" (13.00mm)
  • Thickness (Max):-
  • Lead Spacing:0.201" (5.10mm)
