MF-PSMF075X-2

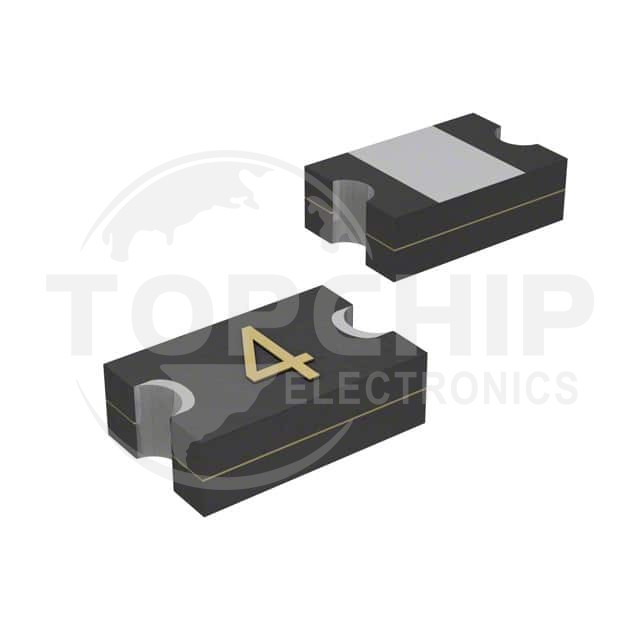

Image is for reference, please contact us to get the real picture

Manufacturer Part
MF-PSMF075X-2
Manufacturer
J.W. Miller / Bourns
Description
PTC RESET FUSE 6V 750MA 0805
Category
Circuit Protection Devices
Family
PTC Resettable Fuses
Series
-
In Stock
14376
Datasheets
-

MF-PSMF075X-2 Specifications

  • Series:Multifuse®, MF-PSMF
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Polymeric
  • Voltage - Max:6V
  • Current - Max:40 A
  • Current - Hold (Ih) (Max):750 mA
  • Current - Trip (It):1.5 A
  • Time to Trip:200 ms
  • Resistance - Initial (Ri) (Min):90 mOhms
  • Resistance - Post Trip (R1) (Max):350 mOhms
  • Resistance - 25°C (Typ):-
  • Operating Temperature:-40°C ~ 85°C
  • Ratings:-
  • Mounting Type:Surface Mount
  • Package / Case:0805 (2012 Metric), Concave
  • Size / Dimension:0.085" L x 0.053" W (2.15mm x 1.35mm)
  • Height - Seated (Max):-
  • Thickness (Max):0.049" (1.25mm)
  • Lead Spacing:-
