MF-R500

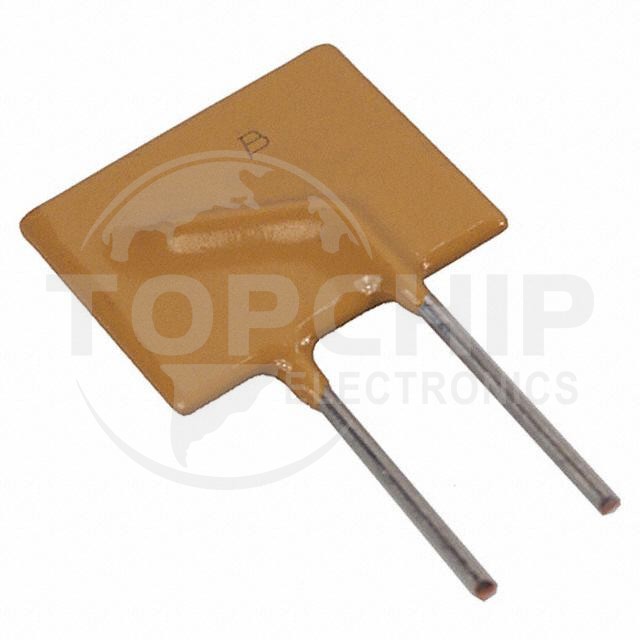

Image is for reference, please contact us to get the real picture

Manufacturer Part
MF-R500
Manufacturer
J.W. Miller / Bourns
Description
PTC RESET FUSE 30V 5A RADIAL
Category
Circuit Protection Devices
Family
PTC Resettable Fuses
Series
-
In Stock
109
Datasheets
-

MF-R500 Specifications

  • Series:Multifuse®, MF-R
  • Package:Bulk
  • Part Status:Active
  • Type:Polymeric
  • Voltage - Max:30V
  • Current - Max:40 A
  • Current - Hold (Ih) (Max):5 A
  • Current - Trip (It):10 A
  • Time to Trip:14.5 s
  • Resistance - Initial (Ri) (Min):10 mOhms
  • Resistance - Post Trip (R1) (Max):50 mOhms
  • Resistance - 25°C (Typ):-
  • Operating Temperature:-40°C ~ 85°C
  • Ratings:-
  • Mounting Type:Through Hole
  • Package / Case:Radial, Disc
  • Size / Dimension:0.685" L x 0.118" W (17.40mm x 3.00mm)
  • Height - Seated (Max):0.980" (24.90mm)
  • Thickness (Max):-
  • Lead Spacing:0.402" (10.20mm)
