MF-PSMF010X-2

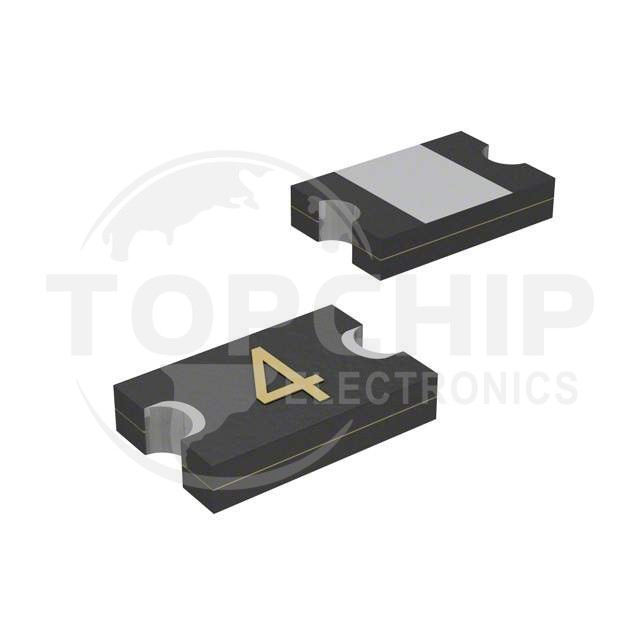

Image is for reference, please contact us to get the real picture

Manufacturer Part
MF-PSMF010X-2
Manufacturer
J.W. Miller / Bourns
Description
PTC RESET FUSE 15V 100MA 0805
Category
Circuit Protection Devices
Family
PTC Resettable Fuses
Series
-
In Stock
31813
Datasheets
-

MF-PSMF010X-2 Specifications

  • Series:Multifuse®, MF-PSMF
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Polymeric
  • Voltage - Max:15V
  • Current - Max:40 A
  • Current - Hold (Ih) (Max):100 mA
  • Current - Trip (It):300 mA
  • Time to Trip:1.5 s
  • Resistance - Initial (Ri) (Min):1 Ohms
  • Resistance - Post Trip (R1) (Max):7.5 Ohms
  • Resistance - 25°C (Typ):-
  • Operating Temperature:-40°C ~ 85°C
  • Ratings:-
  • Mounting Type:Surface Mount
  • Package / Case:0805 (2012 Metric), Concave
  • Size / Dimension:0.085" L x 0.053" W (2.15mm x 1.35mm)
  • Height - Seated (Max):-
  • Thickness (Max):0.033" (0.85mm)
  • Lead Spacing:-
