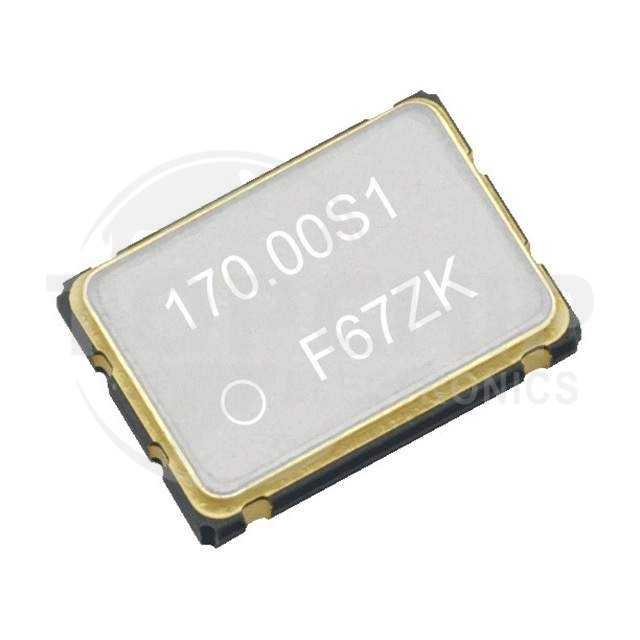

SG-9101CA-C02PHBBC Specifications

• Series:SG-9101
• Package:Tube
• Part Status:Active
• Base Resonator:Crystal
• Type:XO (Standard)
• Programmable Type:Programmed by Digi-Key (Enter your frequency in Web Order Notes)
• Available Frequency Range:670 kHz ~ 20.0 MHz
• Function:Enable/Disable
• Output:CMOS
• Voltage - Supply:1.62V ~ 3.63V
• Frequency Stability:-
• Frequency Stability (Total):-
• Operating Temperature:-40°C ~ 105°C
• Spread Spectrum Bandwidth:±0.25%, Center Spread
• Current - Supply (Max):-
• Ratings:-
• Mounting Type:Surface Mount
• Package / Case:4-SMD, No Lead
• Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
• Height - Seated (Max):0.055" (1.40mm)
