T9GV5L24-18

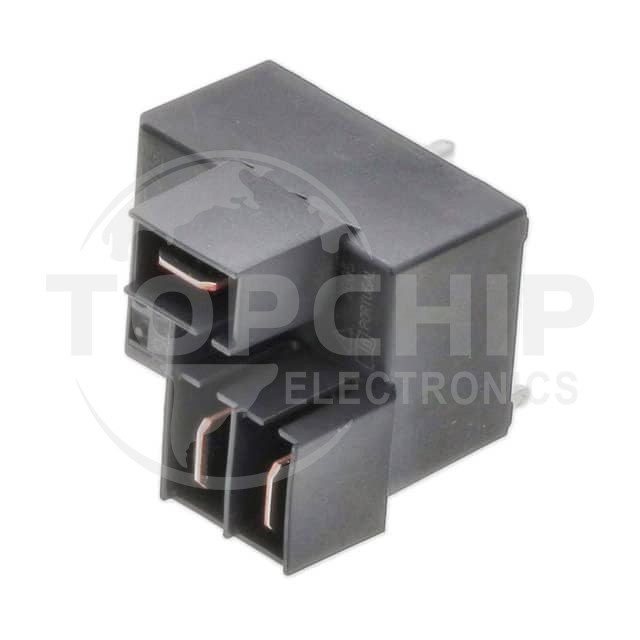

Image is for reference, please contact us to get the real picture

Manufacturer Part
T9GV5L24-18
Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 20A 18V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
839
Datasheets
-

T9GV5L24-18 Specifications

  • Series:T9G
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:18VDC
  • Contact Form:SPDT (1 Form C)
  • Contact Rating (Current):20 A
  • Switching Voltage:480VAC - Max
  • Coil Current:50 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
  • Seal Rating:Sealed - Flux Protection
  • Coil Insulation:Class B
  • Must Operate Voltage:13.5 VDC
  • Must Release Voltage:1.8 VDC
  • Operate Time:15 ms
  • Release Time:22 ms
  • Operating Temperature:-40°C ~ 105°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose
