JQ1A-B-18V-F

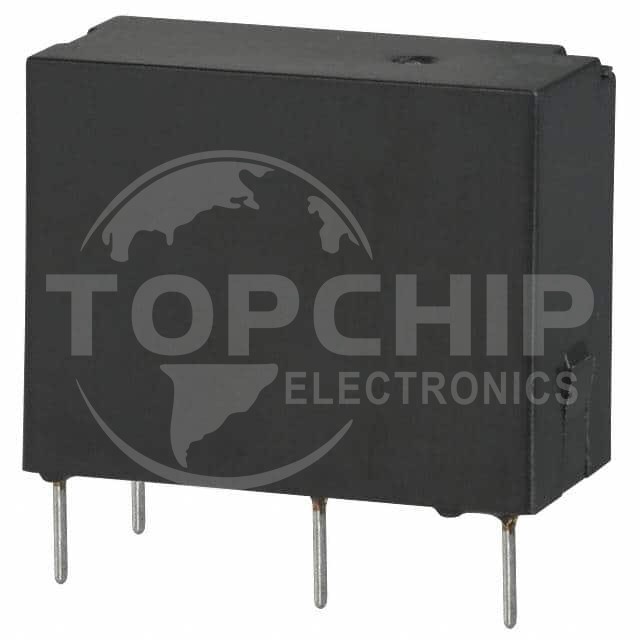

Image is for reference, please contact us to get the real picture

Manufacturer Part
JQ1A-B-18V-F
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 5A 18V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
88
Datasheets
-

JQ1A-B-18V-F Specifications

  • Series:JQ
  • Package:Bulk
  • Part Status:Not For New Designs
  • Mounting Type:Through Hole
  • Coil Voltage:18VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):5 A
  • Switching Voltage:250VAC, 110VDC - Max
  • Coil Current:11.1 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:-
  • Coil Insulation:Class B
  • Must Operate Voltage:13.5 VDC
  • Must Release Voltage:0.9 VDC
  • Operate Time:20 ms
  • Release Time:10 ms
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose
