B07D934BC2-0052

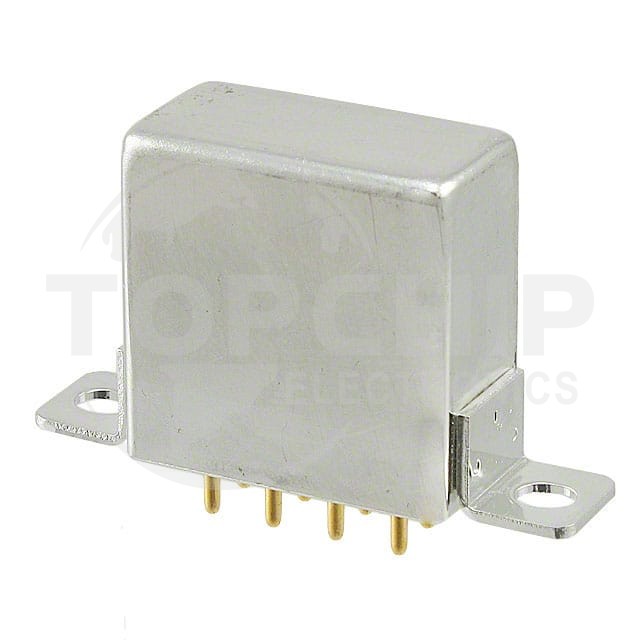

Image is for reference, please contact us to get the real picture

Manufacturer Part
B07D934BC2-0052
Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
RELAY GEN PURPOSE DPDT 10A 26.5V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
3
Datasheets
-

B07D934BC2-0052 Specifications

  • Series:Military, MIL-R-5757/23, 07, CII
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Chassis Mount
  • Coil Voltage:26.5VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):10 A
  • Switching Voltage:115VAC, 28VDC - Max
  • Coil Current:88.3 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Hermetically
  • Coil Insulation:-
  • Must Operate Voltage:13 VDC
  • Must Release Voltage:2.3 VDC
  • Operate Time:15 ms
  • Release Time:15 ms
  • Operating Temperature:-65°C ~ 125°C
  • Contact Material:Silver Cadmium Oxide (AgCdO)
  • Relay Type:General Purpose
