HE1AN-Q-DC48V

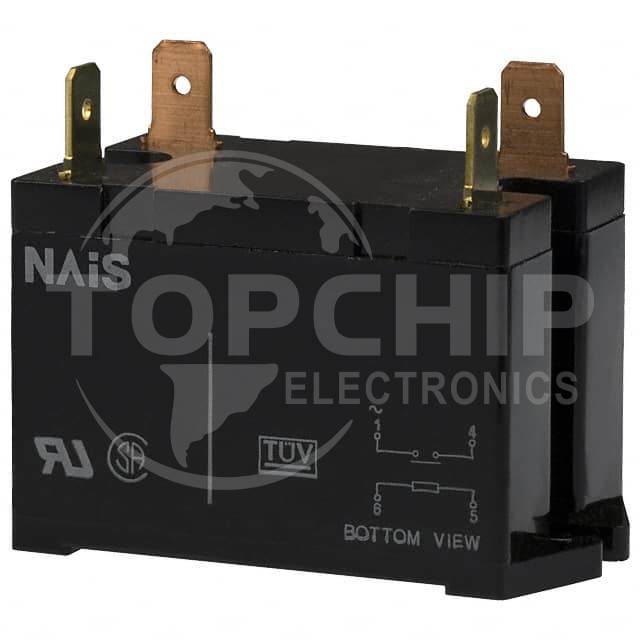

Image is for reference, please contact us to get the real picture

Manufacturer Part
HE1AN-Q-DC48V
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 30A 48V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
70
Datasheets
-

HE1AN-Q-DC48V Specifications

  • Series:HE
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Chassis Mount
  • Coil Voltage:48VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):30 A
  • Switching Voltage:277VAC, 30VDC - Max
  • Coil Current:40 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:Quick Connect - 0.250" (6.3mm)
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:33.6 VDC
  • Must Release Voltage:4.8 VDC
  • Operate Time:30 ms
  • Release Time:10 ms
  • Operating Temperature:-50°C ~ 55°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose
