AZ2150-1A-24DEF

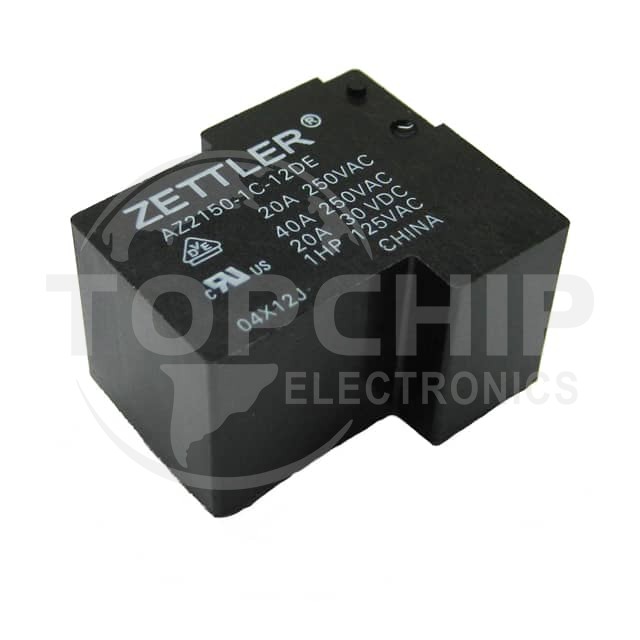

Image is for reference, please contact us to get the real picture

Manufacturer Part
AZ2150-1A-24DEF
Manufacturer
American Zettler
Description
40A MINIATURE POWER RELAY
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
261
Datasheets
-

AZ2150-1A-24DEF Specifications

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:24VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):40 A
  • Switching Voltage:300VAC, 30VDC - Max
  • Coil Current:36.4 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Fully
  • Coil Insulation:Class F
  • Must Operate Voltage:18 VDC
  • Must Release Voltage:2.4 VDC
  • Operate Time:12 ms
  • Release Time:5 ms
  • Operating Temperature:-55°C ~ 85°C
  • Contact Material:Silver Cadmium Oxide (AgCdO)
  • Relay Type:General Purpose
