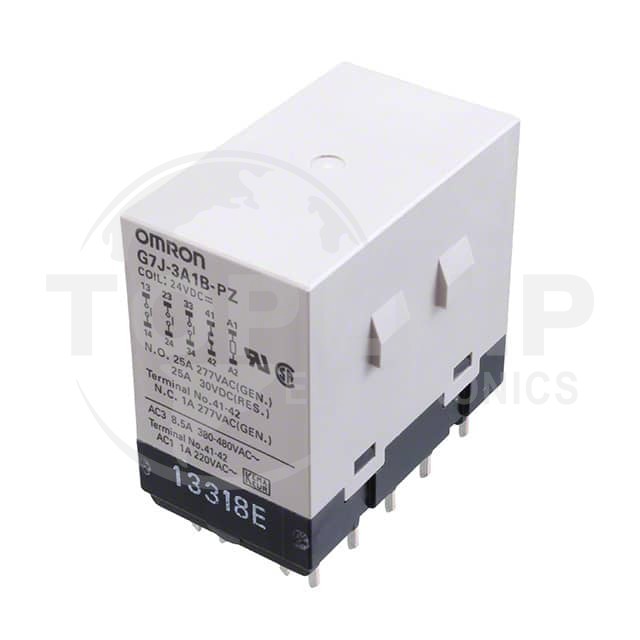

G7J-3A1B-PZ DC24

Image is for reference, please contact us to get the real picture

Manufacturer Part
G7J-3A1B-PZ DC24
Manufacturer
Omron Automation & Safety Services
Description
RELAY GEN PURPOSE 4PST 25A 24V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
5
Datasheets
-

G7J-3A1B-PZ DC24 Specifications

  • Series:G7J
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:24VDC
  • Contact Form:4PST-3NO/1NC (3 Form A, 1 Form B)
  • Contact Rating (Current):25 A
  • Switching Voltage:250VAC, 125VDC - Max
  • Coil Current:83 mA
  • Coil Type:Non Latching
  • Features:Test Button
  • Termination Style:PC Pin
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:18 VDC
  • Must Release Voltage:2.4 VDC
  • Operate Time:50 ms
  • Release Time:50 ms
  • Operating Temperature:-25°C ~ 60°C
  • Contact Material:-
  • Relay Type:General Purpose
