ALZN1B24W

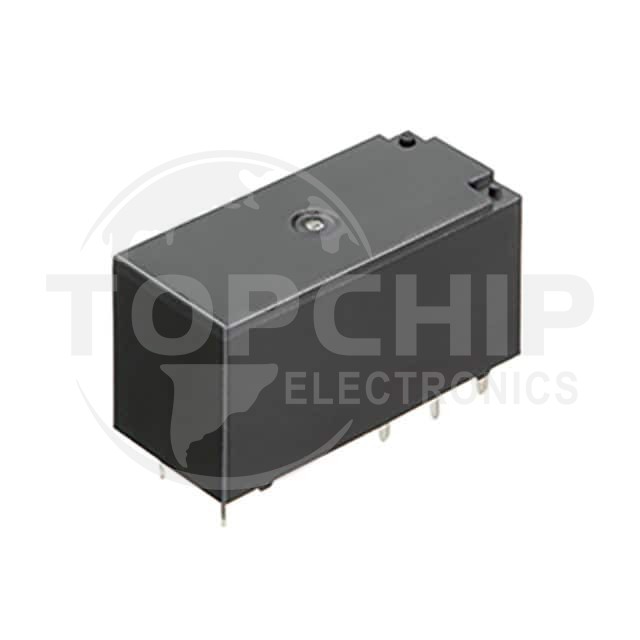

Image is for reference, please contact us to get the real picture

Manufacturer Part
ALZN1B24W
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPDT 16A 24V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
581
Datasheets
-

ALZN1B24W Specifications

  • Series:ALZN
  • Package:Tray
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:24VDC
  • Contact Form:SPDT (1 Form C)
  • Contact Rating (Current):16 A
  • Switching Voltage:440VAC - Max
  • Coil Current:16.7 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Flux Protection
  • Coil Insulation:Class B
  • Must Operate Voltage:16.8 VDC
  • Must Release Voltage:2.4 VDC
  • Operate Time:15 ms
  • Release Time:5 ms
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose
