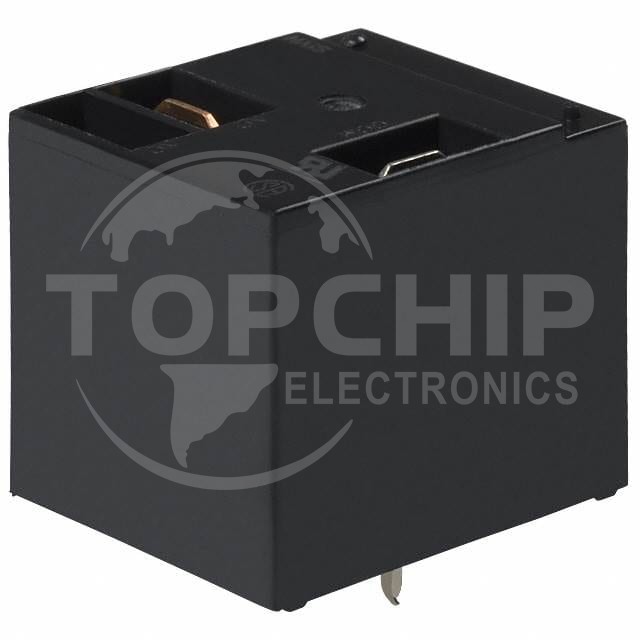

JTN1S-TMP-F-DC24V

Image is for reference, please contact us to get the real picture

Manufacturer Part
JTN1S-TMP-F-DC24V
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPDT 20A 24V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
1068
Datasheets
-

JTN1S-TMP-F-DC24V Specifications

  • Series:JT-N
  • Package:Bulk
  • Part Status:Not For New Designs
  • Mounting Type:Through Hole
  • Coil Voltage:24VDC
  • Contact Form:SPDT (1 Form C)
  • Contact Rating (Current):20 A
  • Switching Voltage:277VAC - Max
  • Coil Current:33.3 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
  • Seal Rating:Sealed - Fully
  • Coil Insulation:Class F
  • Must Operate Voltage:18 VDC
  • Must Release Voltage:2.4 VDC
  • Operate Time:20 ms
  • Release Time:10 ms
  • Operating Temperature:-55°C ~ 85°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose
