3SBC1503A2

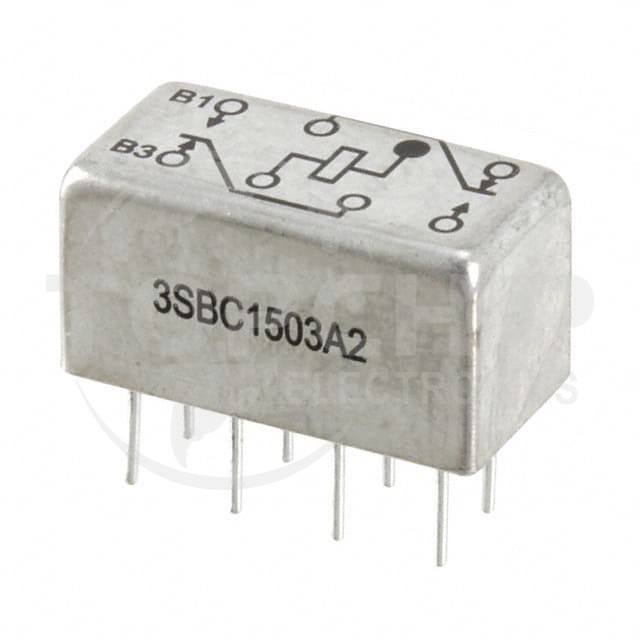

Image is for reference, please contact us to get the real picture

Manufacturer Part
3SBC1503A2
Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
RELAY GEN PURPOS DPDT 2A 26.5VDC
Category
Relays
Family
Signal Relays, Up to 2 Amps
Series
-
In Stock
10
Datasheets
-

3SBC1503A2 Specifications

  • Series:Military, MIL-R-39016/13, 3SBC, CII
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:26.5VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):2 A
  • Switching Voltage:28VDC - Nom
  • Coil Current:19.6 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Hermetically
  • Coil Insulation:-
  • Must Operate Voltage:13.5 VDC
  • Must Release Voltage:1.5 VDC
  • Operate Time:4 ms
  • Release Time:4 ms
  • Operating Temperature:-65°C ~ 125°C
  • Contact Material:-
  • Relay Type:General Purpose
